ESD SMT Splicing Cart with Tool Holder

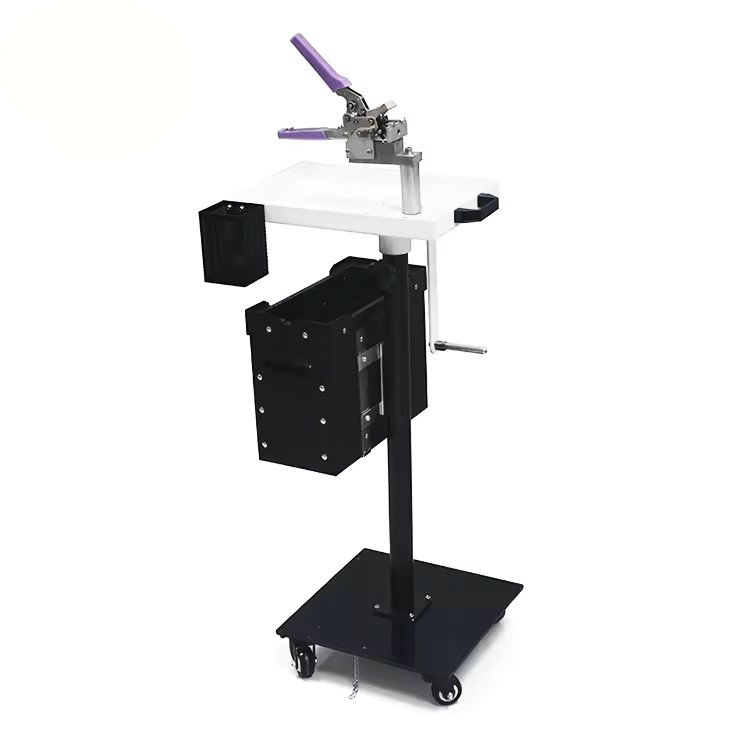

Maximize your floor efficiency with the Professional SMT Splicing Cart. Designed as a mobile hub for precision jointing, this ergonomic trolley allows operators to transport splicing tools, clips, and tapes seamlessly between different SMT production lines, ensuring zero-downtime reel changes wherever they are needed.

Key Advantages & Industrial Design

• Full ESD Protection: Engineered with a specialized ESD-safe coating and equipped with conductive rotatable wheels. This ensures that static discharge is eliminated at the source, protecting your sensitive SMT components from invisible electrical damage.

• Ergonomic Height Adjustment: The splicing platform is fully adjustable from 900mm to 1030mm. This allows operators of different heights to work in a comfortable, neutral posture, reducing fatigue during long shifts.

• 360° Maneuverability: Featuring heavy-duty rotatable wheels, the cart can be moved in any direction across the production floor, allowing for rapid response to "Reel Low" alerts on any machine.

• Optimized Tool Base & Waste Management:

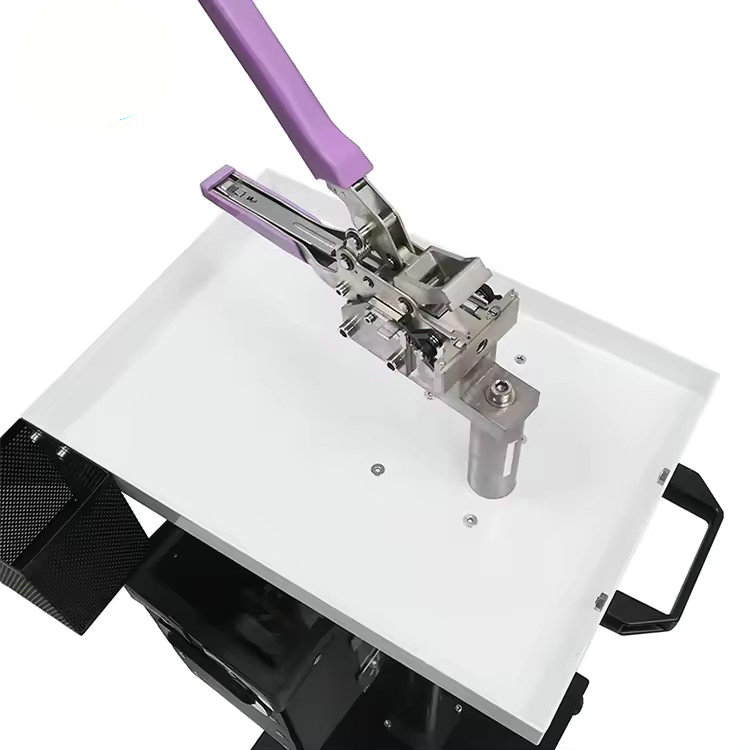

  • Rotatable Tool Mount: The specialized base allows your splicing stapler to rotate freely, giving you the best angle for every joint.

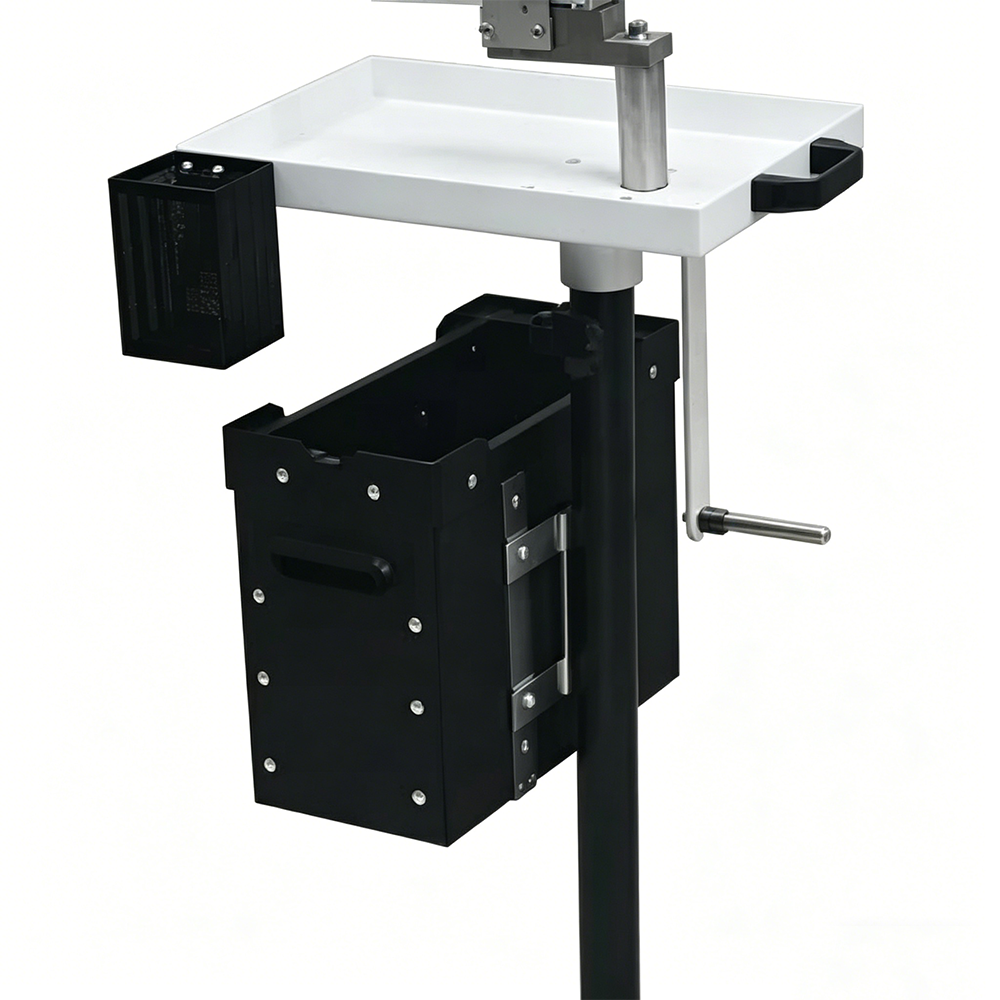

  • Integrated Scrap Collection: Includes a dedicated copper scrap box and an anti-static junk box to keep your production area clean and free of debris.

Technical Specifications

Professional Splicing Workflow (Instructions)

1. Customize Your Setup: Adjust the cart to your preferred ergonomic height using the locking mechanism.

2. Tape Alignment: Place the component carrier tape onto the 2mm or 4mm pitch placement pin guides located on the splicing plate.

3. Tool Preparation: Install your continuous splice clips into the stapler-style splicing tool.

4. Secure the Joint: Center both carrier tapes (cover tape facing up) on the alignment pins and secure them with the integrated clamps.

5. Crimp & Connect: Depress the tool handle to securely bridge the carrier tapes with the brass clip.

6. Seal the Cover: Apply an SMT splice tape strip over the cover tape and press firmly for a 100% secure, feeder-ready connection.

Why Your SMT Line Needs This Workstation

In high-volume manufacturing, the "Cost of Movement" is a hidden profit killer. By providing your operators with a Funsmt Mobile Splicing Workstation, you:

• Increase Efficiency: Reduce the time spent walking back and forth to fixed splicing stations.

• Improve Reliability: Ensure every splice is performed on a stable, calibrated surface.

• Prolong Machine Life: Keep scrap copper and tape off the floor and out of your delicate pick-and-place machinery.
