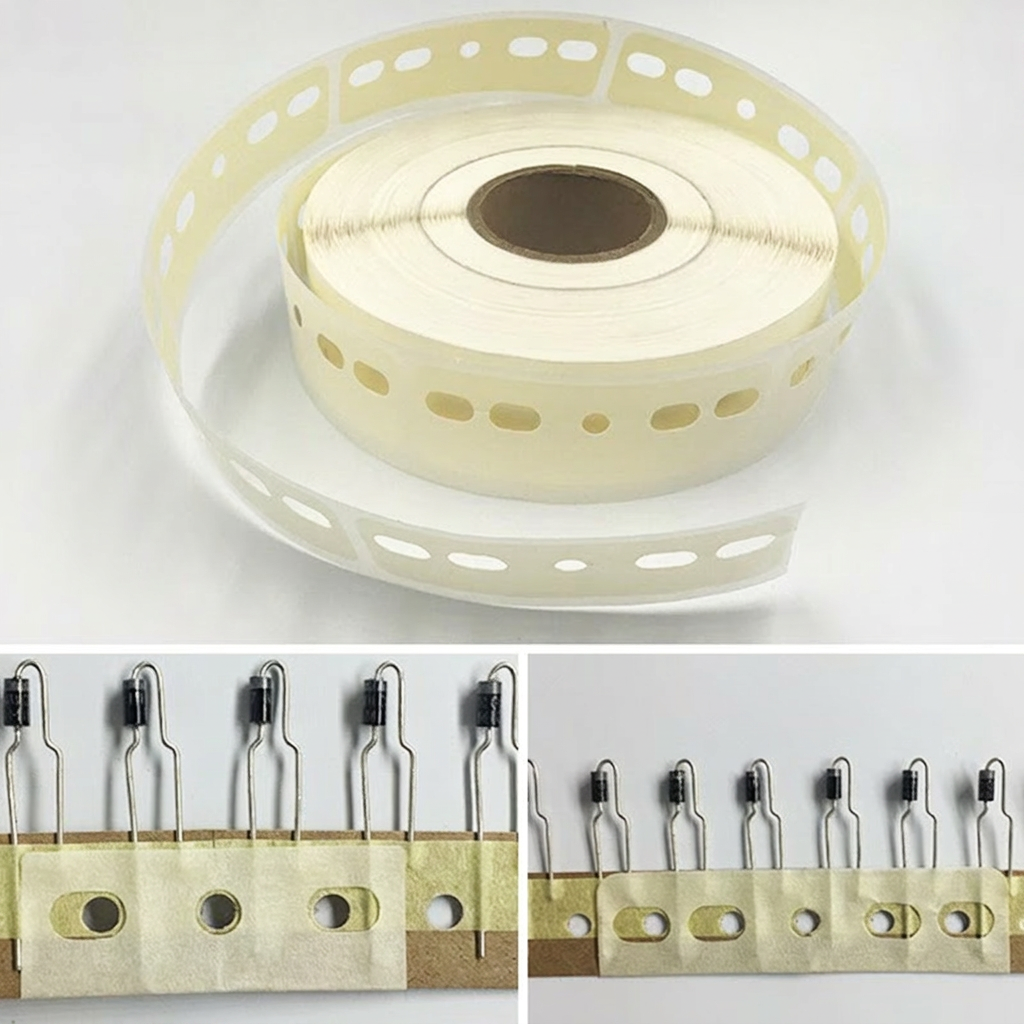

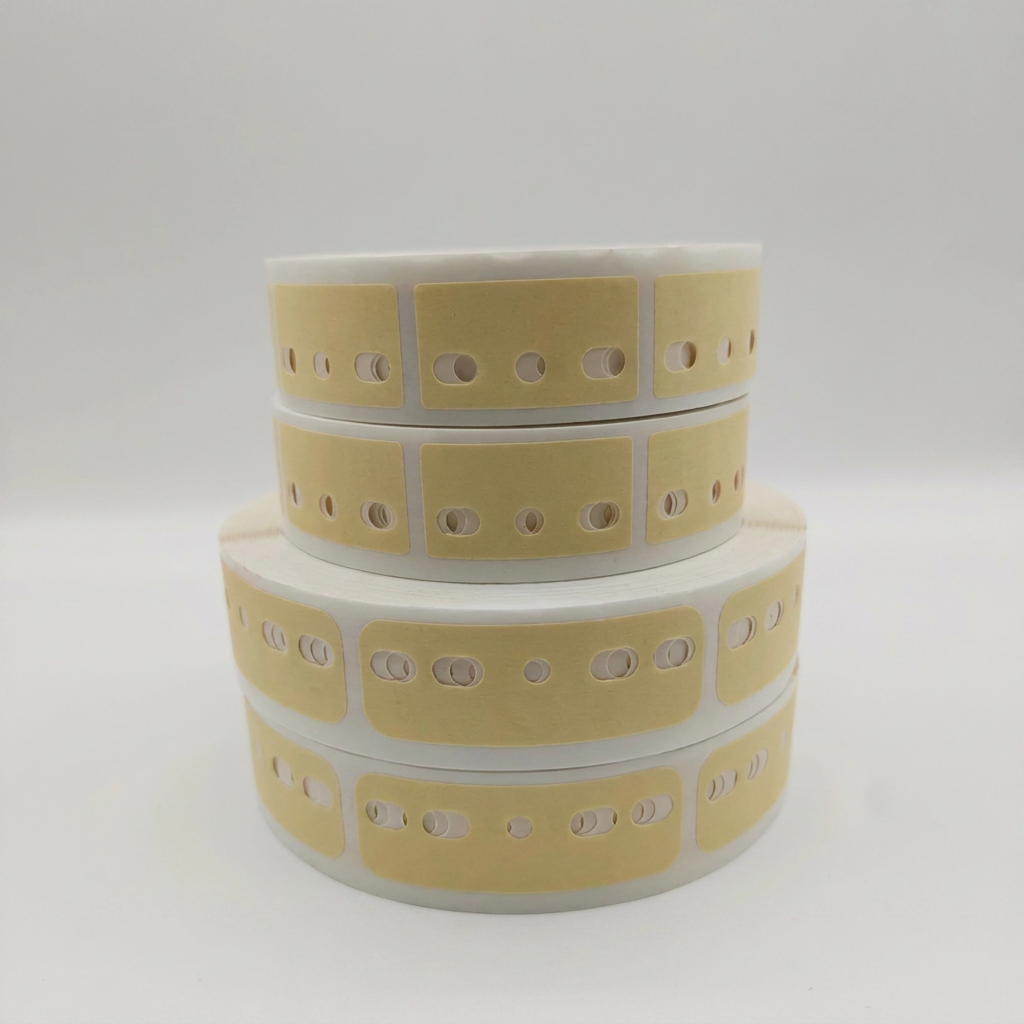

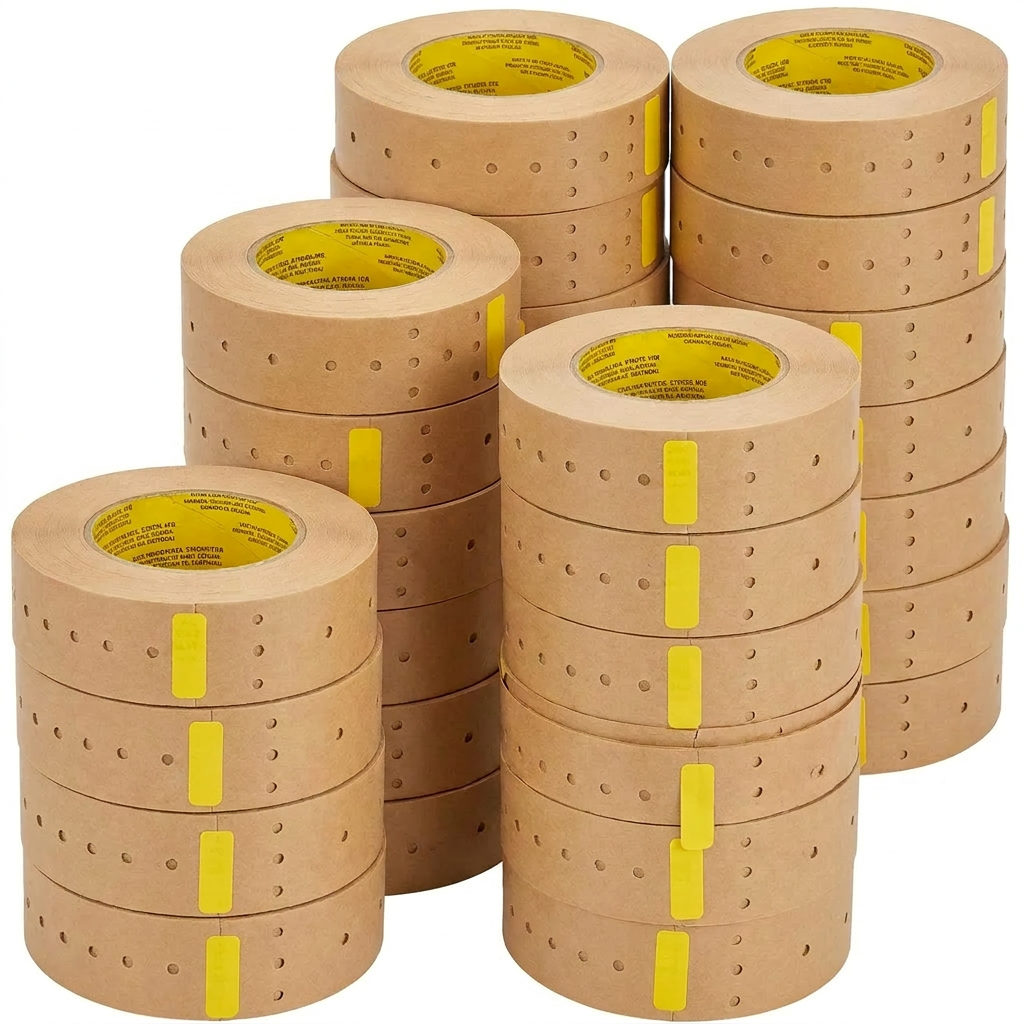

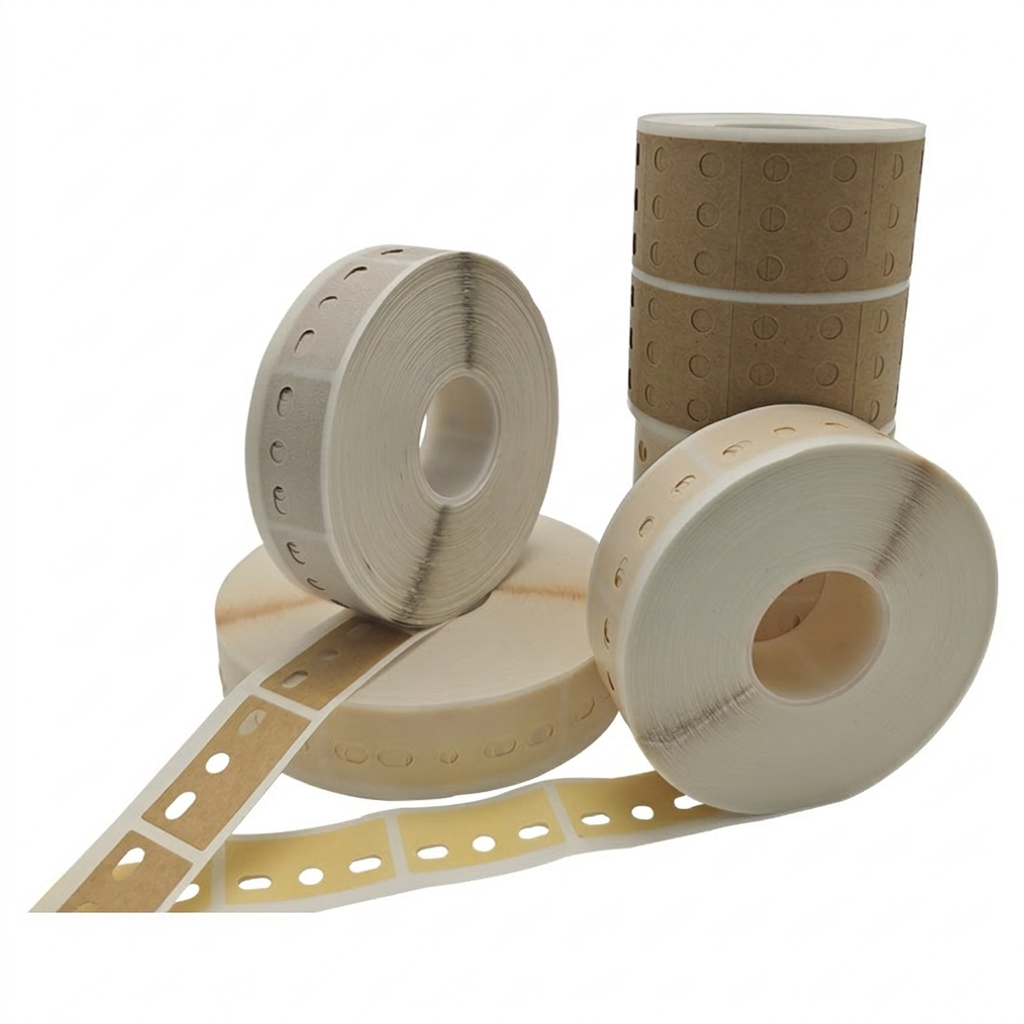

SMD AI Splice Tape

Features vs. Benefits

Advantages

• Maximize Machine Throughput: Boosts total pick-and-place output by 5% to 30% by eliminating downtime during reel changes.
• Feeder Protection: Reduces the frequency of reel reloads, significantly decreasing mechanical wear and maintenance on expensive feeders.
• Intuitive Alignment: Built-in guide indentations allow for fast, error-free manual splicing, even for junior operators.
• Universal Compatibility: Optimized for all major SMT platforms, including Panasonic, Fuji, Yamaha, and Siemens machines.

Technical Specifications:

• Material: Premium PET (Blue/Yellow) or Anti-Static Masking Paper
• Compatible Widths: 8mm, 12mm, 16mm, 24mm, 32mm (Full range available)
• Adhesion Force: $>100$ N/m (Peel strength)
• Operating Temp: 0°C to 80°C
• ESD Rating: ${10}^6-{10}^9$ $\mathrm{\Omega }$ (For anti-static versions)

What’s in the Box:

• 1 x Box of Professional SMT Double Splice Tapes
• Note: 500 pcs/box for 8mm-16mm; 250 pcs/box for 24mm-32mm.

FAQ

• Q: Can these be used without a splice tool or pliers?
  • A: Yes, the M01 series is designed for manual "tool-free" application. However, using a splice cutter will ensure a more precise joint.
• Q: Are these tapes suitable for high-speed 0201 or 01005 component feeding?
  • A: Absolutely. The high-tack adhesive and perfect alignment prevent any thickness variations that could cause jams in precision feeders.
• Q: Do you offer different colors for different machine zones?
  • A: Yes, we provide Blue, Yellow, and Black variants to help your team color-code their production lines.
