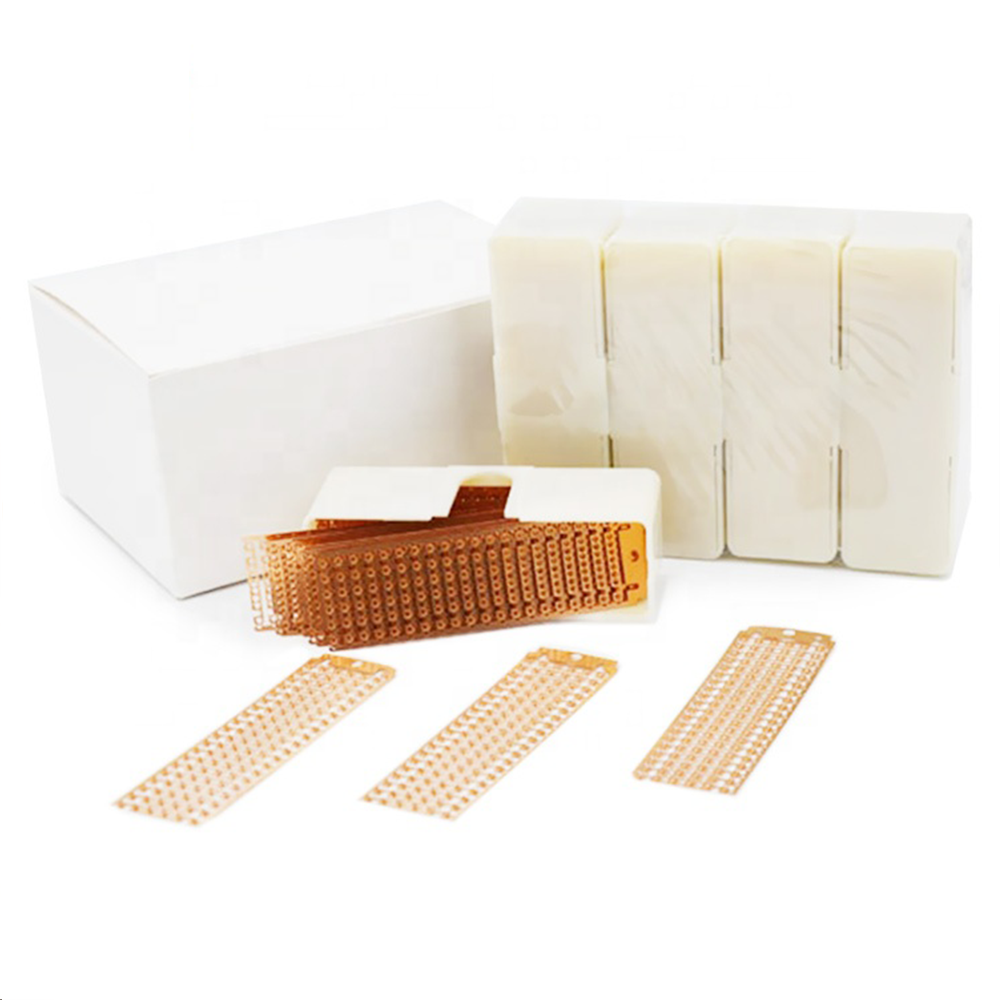

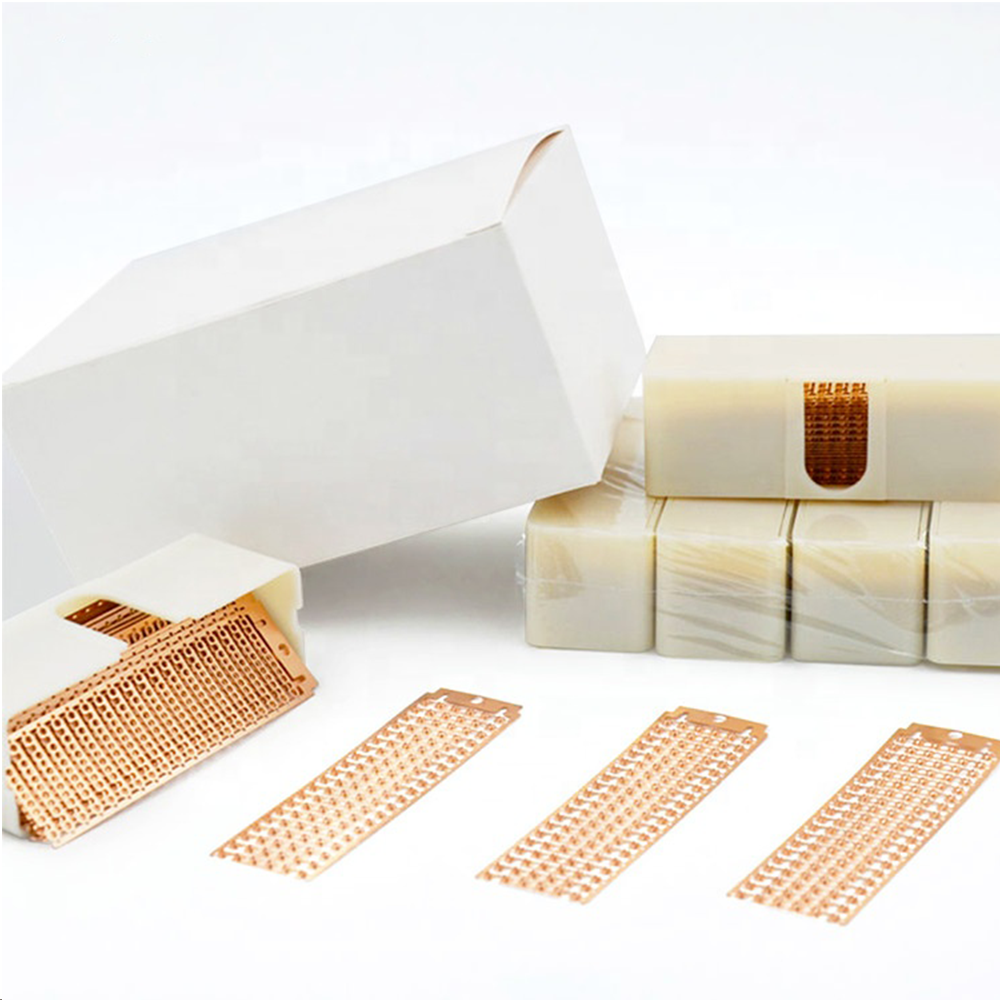

Frame-Style Brass Splice Clips

Optimize your SMT reel changeovers with our professional Frame-Style Splice Clips. Engineered from high-grade brass, these clips provide the mechanical strength needed for secure, high-speed component feeding while maximizing your machine's uptime.

Why Choose Frame-Style Splice Clips?

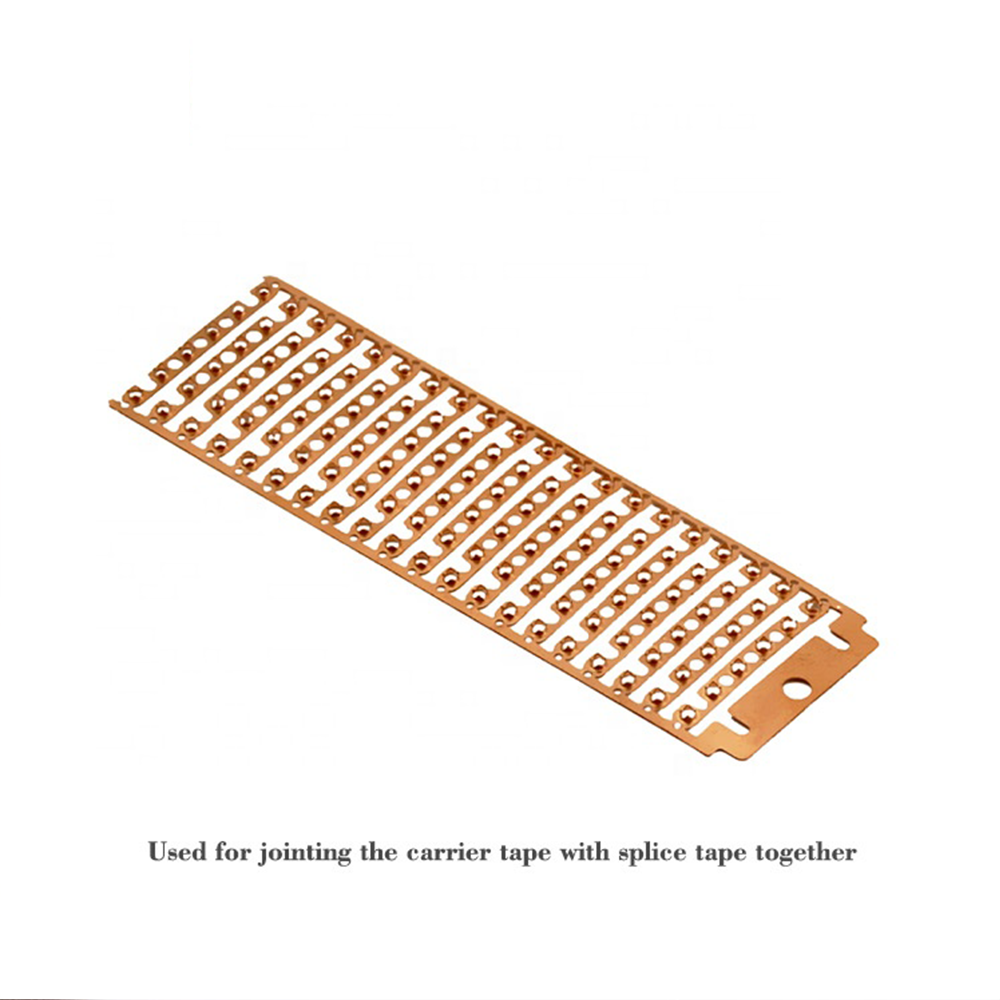

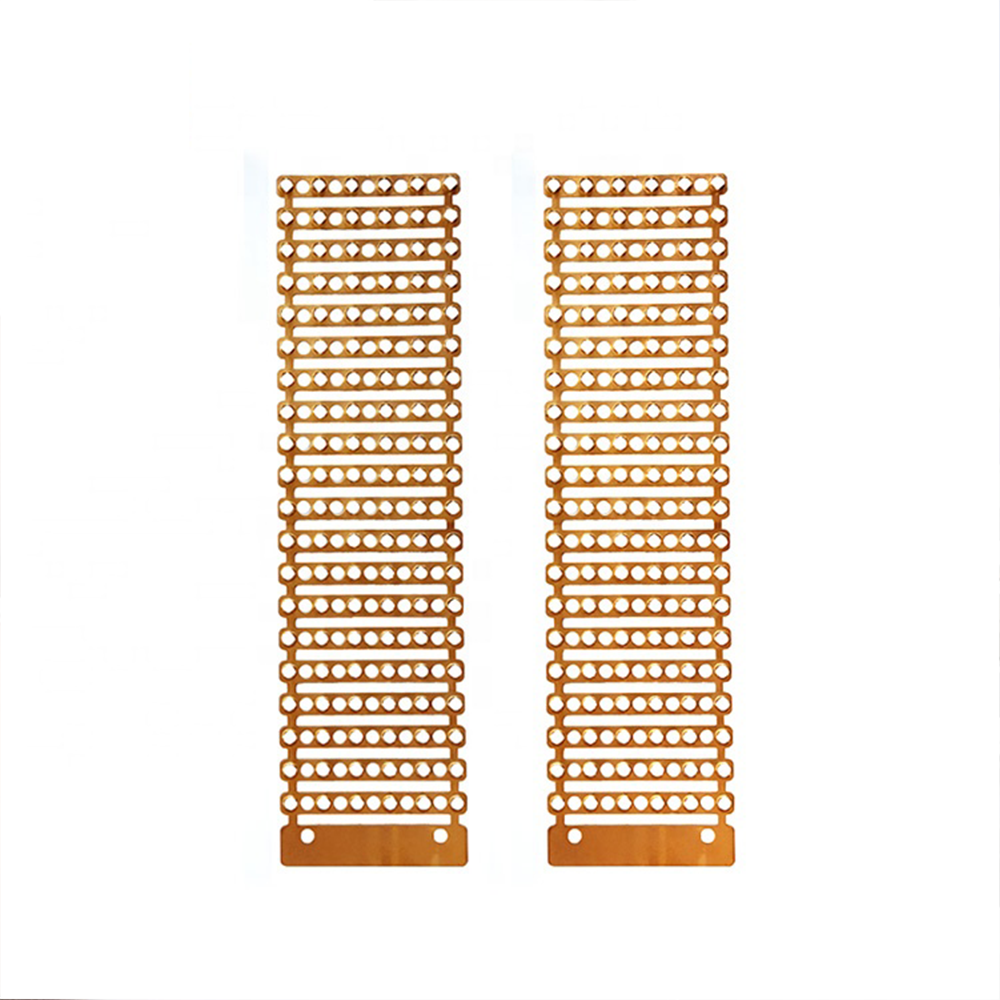

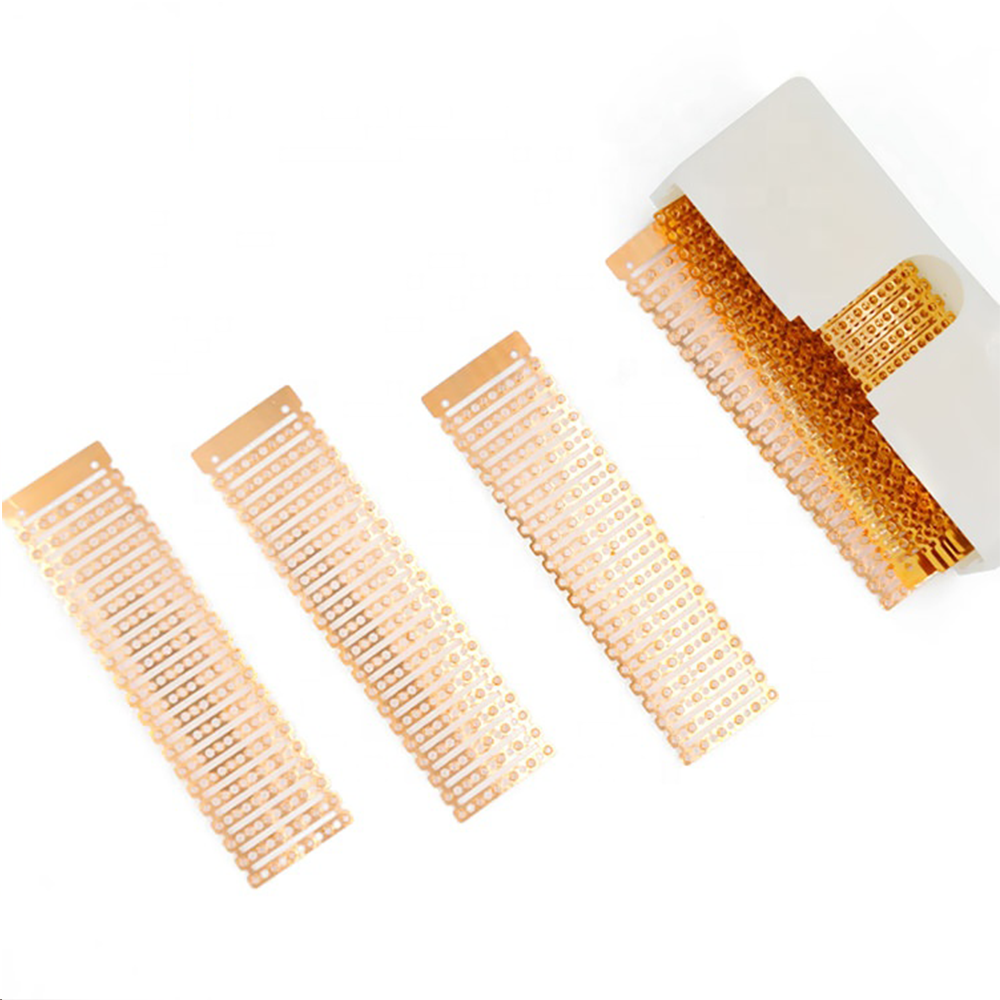

• 20-Clip Continuous Frame: Designed in a "staple-strip" format, each frame contains 20 clips. This allows for rapid, multi-shot jointing when used with a continuous splicing stapler, drastically reducing the time spent reloading consumables.

• Superior Brass Toughness: Manufactured from premium copper/brass with enhanced ductility. These clips bend precisely without snapping, ensuring a firm grip on both plastic and paper carrier tapes.

• Precision Placement Holes: Each clip features ultra-accurate alignment holes that lock onto the carrier tape's sprocket holes, ensuring the joint remains perfectly centered for the machine's vision system.

• Reduce Downtime & Waste: Boost your working efficiency by up to 35%. By enabling the connection of partial reels and surplus materials, these clips help you save up to 40% in component costs.

• Ultra-Thin 0.1mm Profile: The slim design ensures the spliced joint passes through the feeder’s precision gates smoothly, preventing mechanical jams and prolonging the service life of your feeders.

Strategic Integration

For the most secure and reliable connection, these clips are designed to be used in conjunction with a Professional Splicing Stapler. Together, they create a reinforced joint that can withstand the high tension of automated SMT feeders.

Technical Specifications

Application & Performance

• Universal Application: Guarantees a secure connection for all types of SMT component reels.

• Full Material Utilization: Perfect for "short reel" preparation and joining surplus materials, ensuring no component is left behind.

• Enhanced Accuracy: Hardened placement ensures the splice stays secure even under high-speed industrial vibration.

Important Usage Notes

• Standardized Use: These clips are precision-engineered for SMT carrier tapes only. Do not attempt to use them on hard metal objects or non-intended materials.

• Safety First: Handle frames with care to avoid injury from the sharp edges of the clips during loading.
