Double-Sided SMT Splice Tape

8mm * 500pcs/box * 1 box

$32.00

Type 8mm * 500pcs/box * 1 box 12mm * 500pcs/box * 1 box 16mm * 500pcs/box * 1 box 24mm * 250pcs/box * 1 box 32mm * 250pcs/box * 1 box

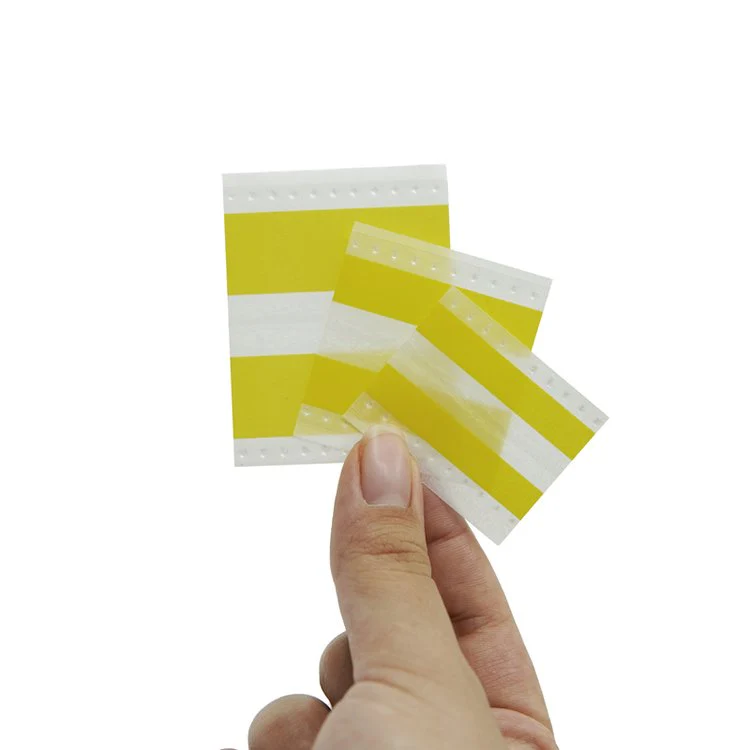

Boost your assembly line efficiency with Funsmt’s Double Splice Tapes. Engineered for speed and reliability, these pre-cut PET strips allow for rapid manual splicing of component carrier tapes—with or without specialized tools—ensuring your pick-and-place machines never stop running.

Performance Benefits & ROI

Maximize Machine Output: Increase your pick-and-place productivity by 5% to 30% by eliminating the need to stop and re-thread feeders during reel changes.

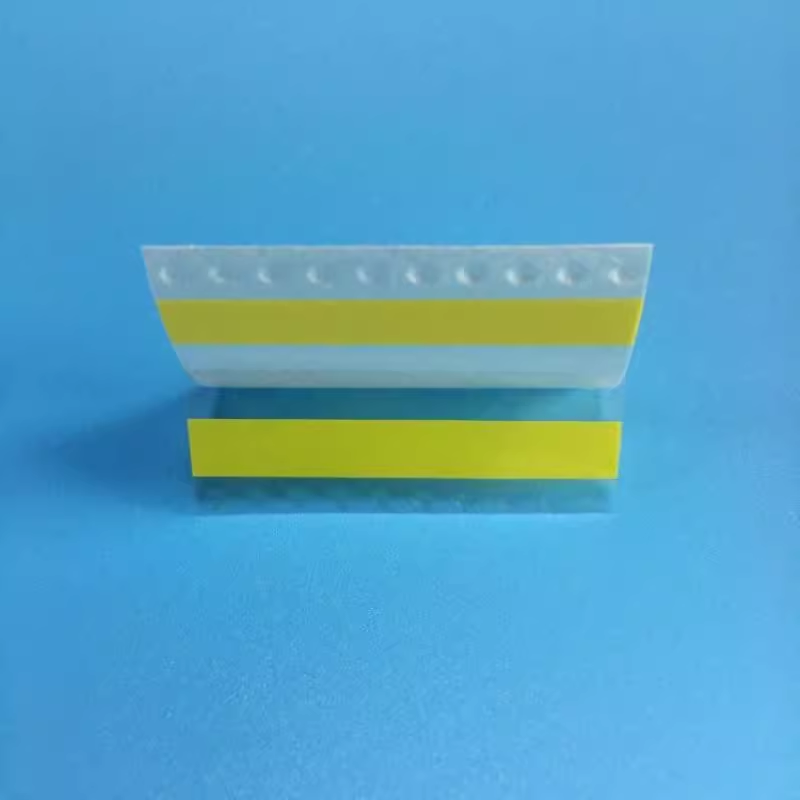

Intelligent Alignment System: Each strip features 10 precision-embossed dots on both sides. These serve as visual guides to ensure perfect synchronization with carrier tape sprocket holes, preventing vision system errors.
Reduce Equipment Wear: By maintaining a continuous feed, you significantly decrease mechanical abrasion on feeders caused by frequent reloading and re-indexing.

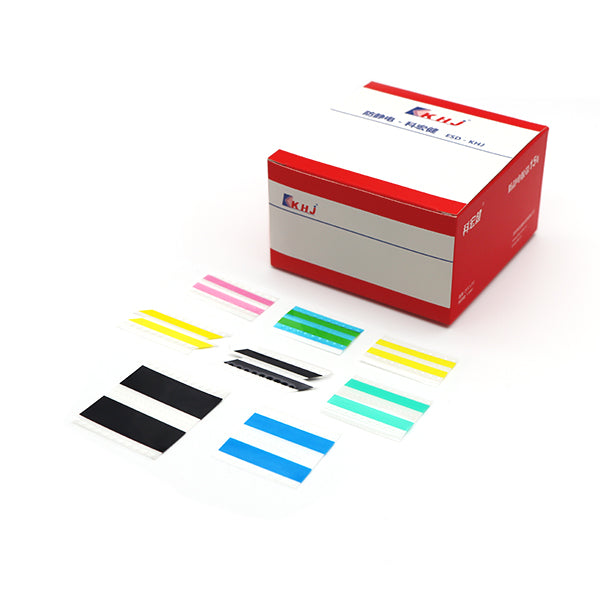

Versatile ESD Options: Available in three technical grades to meet your specific factory requirements: Full Anti-Static (ESD), Half Anti-Static, and Non-Anti-Static.

Technical Specifications

Model Size	Dimensions (Per Piece)	Package Quantity
8mm	4.8mm x 40mm	500 pcs / box
12mm	6.0mm x 40mm	500 pcs / box
16mm	9.5mm x 40mm	500 pcs / box
24mm	16.0mm x 40mm	250 pcs / box

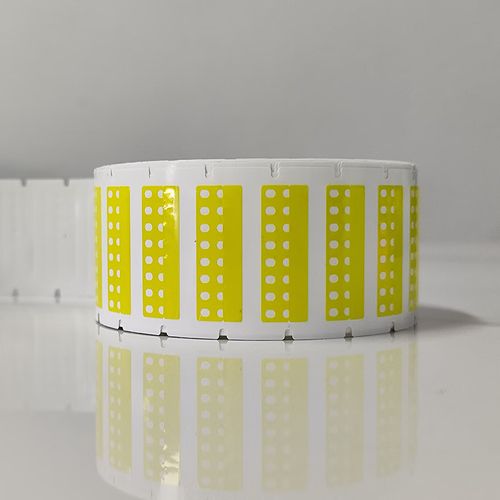

Customization: Wide-format splicing tapes (up to 88mm) are available upon request for specialized automotive or industrial electronics panels.
Material: High-tensile, heat-resistant PET film with residue-free industrial adhesive.

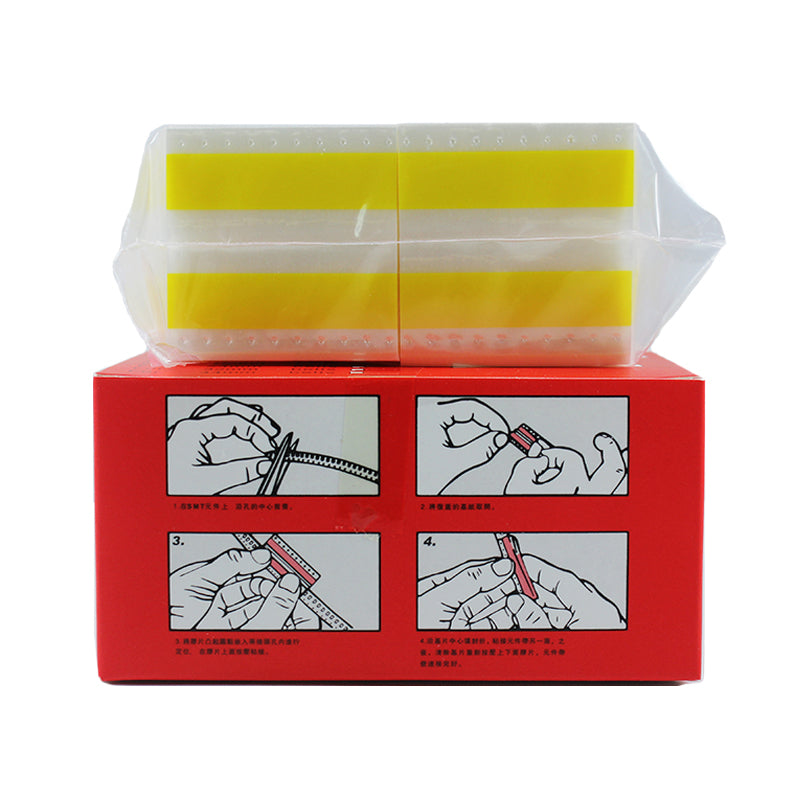

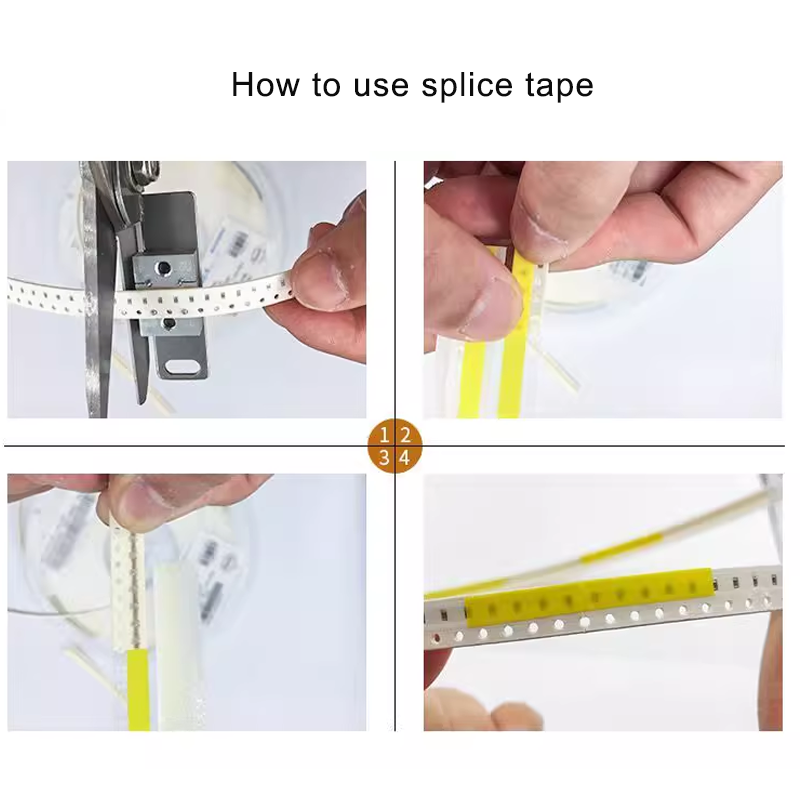

Professional Splicing Instructions

Preparation: Use a precision cutting tool to ensure a perfectly square cut on the ends of both the expiring and new carrier tapes.
Expose Adhesive: Peel away the release liner to reveal the high-tack adhesive surface.
Align: Place the cut carrier tapes (cover tape facing down) onto the first strip, using the embossed dots to align with the sprocket holes.
Secure: Fold the second strip over to the underside of the carrier tape and press firmly to create a high-strength bond.
Finish: Remove and discard the clear plastic protective cover and guide strip. The splice is now complete and feeder-ready.

Why Choose Funsmt Double Splice Tapes?

In high-speed SMT environments, a weak splice means a line stoppage. Funsmt tapes are engineered with a specific adhesive rheology that bonds instantly to both plastic and paper tapes, yet remains thin enough to pass through feeder precision gates without jamming.
